ZINGEAR Group G5W11-WZ200A02-W2 Household Appliance Micro Switch

Can be applied to air fryers for household appliances

ZINGEAR Group G5W11-WZ200A02-W2 household appliance micro switch is a high reliability switch product specially designed for kitchen appliances such as air fryers, accurately matching the core requirements of equipment for stability, long service life, and strict safety compliance.

By carefully selecting high-quality materials and combining with Jin Yu's precision manufacturing technology, this switch can easily cope with the dual challenges of high temperature working environment and high-frequency start stop operation of air fryers, ensuring stable and consistent operating performance under complex kitchen conditions.

Product Inquiry

Product Features

Product advantages:

The product is equipped with durable contacts, which combine the significant advantages of low resistance transmission and high mechanical durability. It perfectly adapts to long-term continuous work needs such as air fryer door interlock control and temperature gear switching, and builds a strong safety line from start-up to operation, bringing users a reassuring and convenient cooking experience.

ZINGEAR micro switches empower kitchen appliance upgrades with hardcore quality.

Key Features:‌

·Waterproof and dustproof (IP67) design

·Small in size and tight in grip

·Having global safety certification

·Long lifespan, high reliability

·Equipped with various forms of operating handles

·The types of wire connectors are complete

·Widely used in fields such as automotive control, home appliance control, industrial control, etc

·Various installation dimensions meet different installation requirements

Technical parameters：

Operating Voltage	125/250VAC 30VDC
Rated Current	5A
Contact Resistance	200mΩ Max.
Insulation Resistance	100mΩ Min.
Contact Form	Single Knife Double Throw (SPDT)
Operating Force (OF)	customizable
Operating Temperature	-40℃～+85℃
Contact Material	customizable
Electrical Life	50,000次 Min.
Mechanical Life	50,000次 Min.
Protection Class	IP67
Terminal & Lever	Standard straight handle
Outline	customizable
Withstand Voltage	500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell

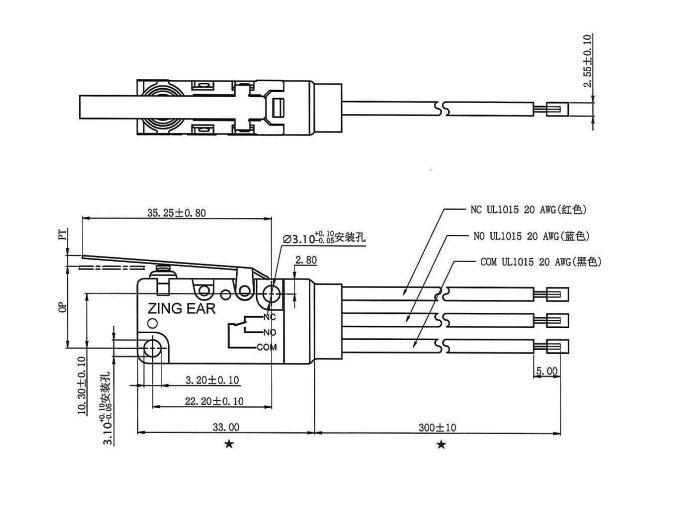

Drawings：
